40 Ft VACCINE TRANSPORT VESSEL

40 Ft VACCINE TRANSPORT VESSEL

L. O. A

12.64 m

BREADTH

3.45 m

DRAUGHT

0.49 m

FUEL CAPACITY

1200 L

PASSENGER CAPACITY

12+ 1 CREW

ENGINE

02 × 250 HP OBM

DISPLACEMENT (LIGHT)

7.40 Tons

DISPLACEMENT (LOADED)

9.42 Tons

OPERATIONAL DISTANCE

15 NM from Shore

WATER CAPACITY

150 L



GENERAL

  • Minimum capacity – 12 Passenger + 01 Crew
  • Classification – Approved by Lloyd ‘s Register of Shipping (being an ‘ACS Classification
    Society) under special Service Craft Rules.
  • Regulatory – Vessel’ shall be registered inspected and certified by the Maldives
    Transport Authority
  • Stretcher – One stretcher Shall be accommodated onboard the vessel

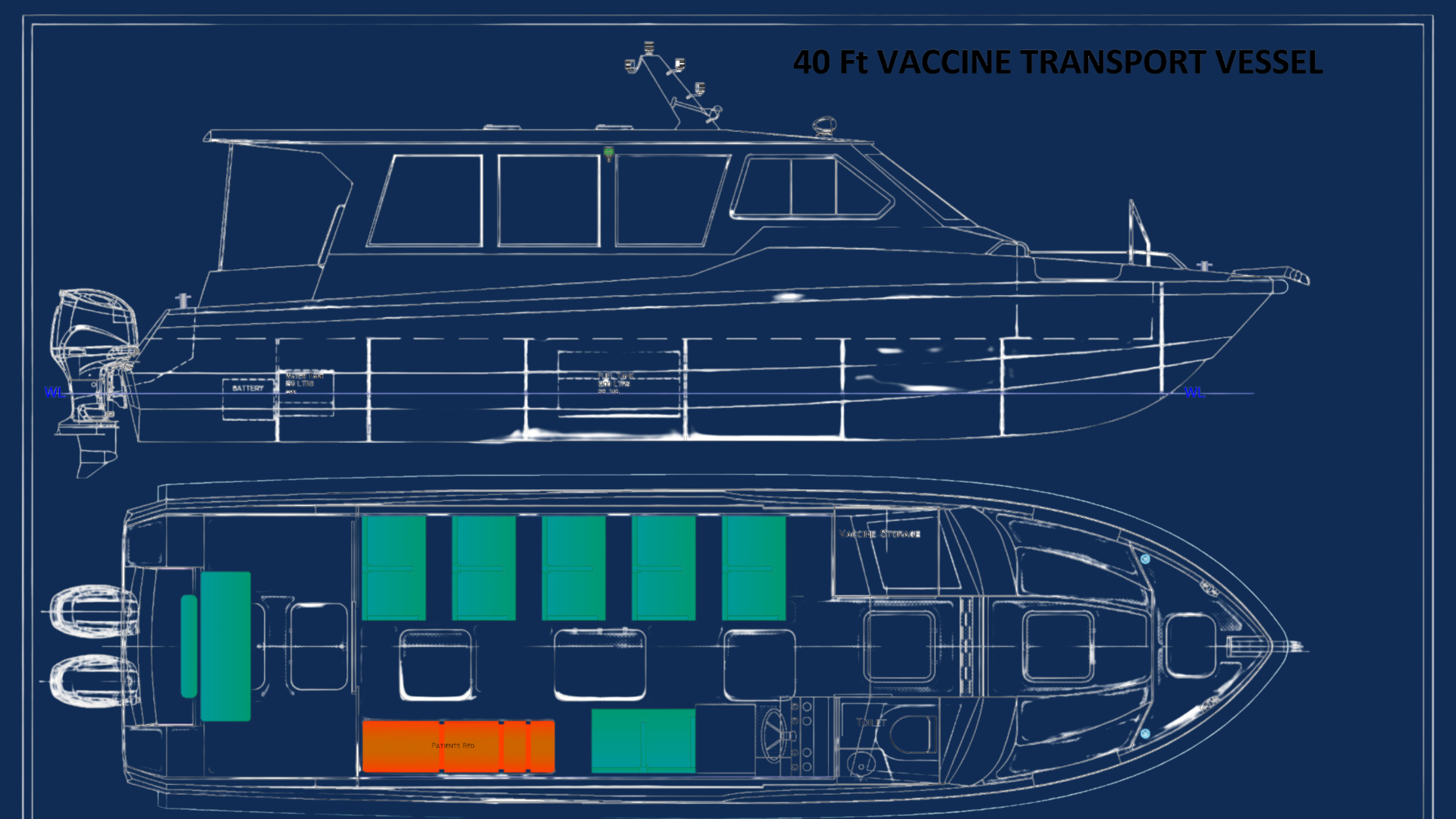

  • Ventilation – Vessel has aluminum sliding windows all around as shown in the
    vessels General Arrangement Drawings.
  • Seating – Comfortable individual seats provided as shown in the vessel General
    arrangement Drawing
  • Light luggage storage Area – Sufficient luggage storage provided underneath the seats.

STRUCTURE AND MATERIALS

  • All materials used for the construction of the vessel, approved material by classification society   Lloyd Register of Shipping.
  • Drawing approved prior to construction by Lloyd Register of Shipping (being an IACS Classification   Society) under Special Service Craft Rules.
  • Vessels will not be classed but designed to class rule requirements with scantling drawings appraised by  Lloyd Register of Shipping (being an IACS Classification Society) under Special Service Craft Rules.
  • All overboard discharges and local structural reinforcement constructed in accordance with the scantlings approved by the classification society Lloyds Register of Shipping. Hull and transom sufficiently reinforced to withstand vibration occurs during the voyage and    sufficient laminates and reinforcement provided as per the rule requirement.
