45 Ft VACCINE TRANSPORT VESSEL
45 Ft VACCINE TRANSPORT VESSEL
L. O. A
13.80M
BREADTH
4.07M
DRAUGHT
1.30M
FUEL CAPACITY
2000L
PASSENGER CAPACITY
12+ 1 CREW
ENGINE
250 HP × 3
DISPLACEMENT (LIGHT)
10.50 TONS
DISPLACEMENT (LOADED)
13.22 TONS
MAX SPEED
32 KNOTS
WATER CAPACITY
250 L

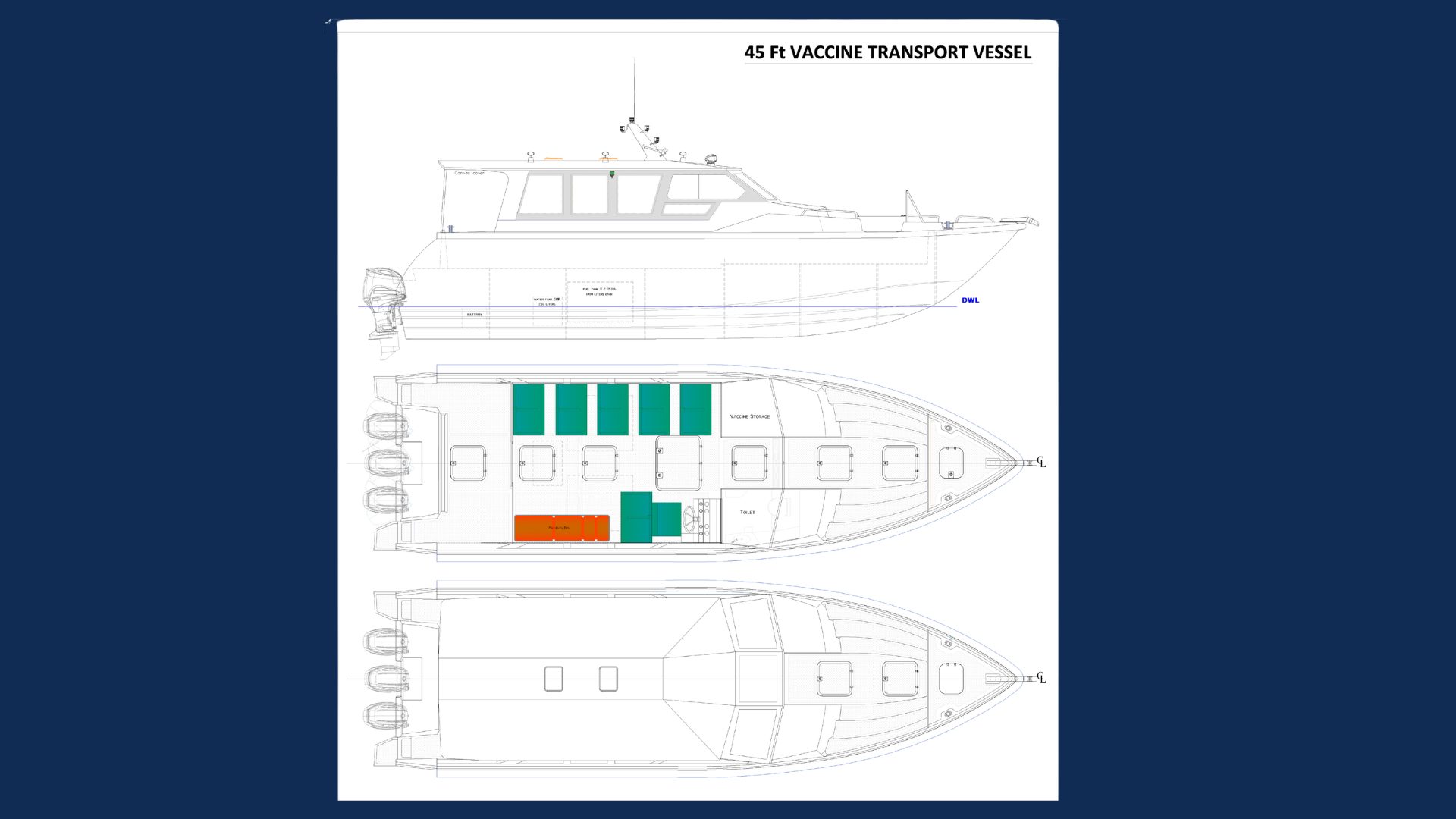

LAYOUTS
GENERAL
- Minimum capacity – 12 Passenger + 01 Crew
- Classification – Approved by Lloyd’s Register of Shipping (being an ‘ACS Classification
Society) under special Service Craft Rules. - Regulatory – Vessel’ shall be registered. inspected and certified by the Maldives
Transport Authority - Stretcher – One stretcher shall be accommodated onboard the vessel
- Ventilation – Vessel has aluminum sliding windows all around as shown in the
vessels general arrangement drawings. - Seating – Comfortable individual seats provided as shown in the vessel General
arrangement Drawing - Light luggage storage Area – Sufficient luggage storage provided underneath the seats.
STRUCTURE AND MATERIALS
- All materials used for the construction of the vessel, approved material by classification society Lloyd Register of Shipping.
- Drawing approved by Lloyd Register of Shipping (being an IACS Classification Society) under Special Service Craft Rules prior to construction.
- Vessels will not be classed but designed to class rule requirements with scantling drawings appraised by Lloyd Register of Shipping (being an IACS Classification Society) under Special Service Craft Rules.
- All overboard discharges and local structural reinforcement constructed in accordance with the scantlings approved by the classification society Lloyds Register of Shipping Hull and transom sufficiently reinforced to withstand vibration occurs during the voyage and sufficient laminates and reinforcement provided as per the rule requirement.
